Plotting tables in Org-Mode using org-plot

Introduction

This tutorial provides instructions for installing and using org-plot as well as a complete overview of the org-plot options and demonstrations of some of the many types of graphs which can be generated automatically from tables in your org-mode files using org-plot.

While graphs will be included in the html version of this tutorial, if you would like to play along at home you can download the original org file here org-plot.org.

Getting Set up

Requirements

Org-plot uses Gnuplot as well as the Emacs Gnuplot-mode to power its graphing. To download and install these two requirements see the following

Gnuplot
http://www.gnuplot.info/
Gnuplot-Mode
http://cars9.uchicago.edu/~ravel/software/gnuplot-mode.html

Installation

First we need to make sure that org-plot is on your system and available to emacs. If you have a recent version of org-mode (version 6.07 or later) then org-plot is already included. Otherwise you can grab the latest org-plot.el from the Org repository.

Key binding

The main plotting command, org-plot/gnuplot, is bound to C-c " g. This is the only org-plot command used in this tutorial.

Examples

2d plots (lines and histograms)

Lines

To plot Table 1, execute the org-plot/gnuplot command. This command finds and plots the nearest table. The result, saved as a png file, is displayed in Figure 1.

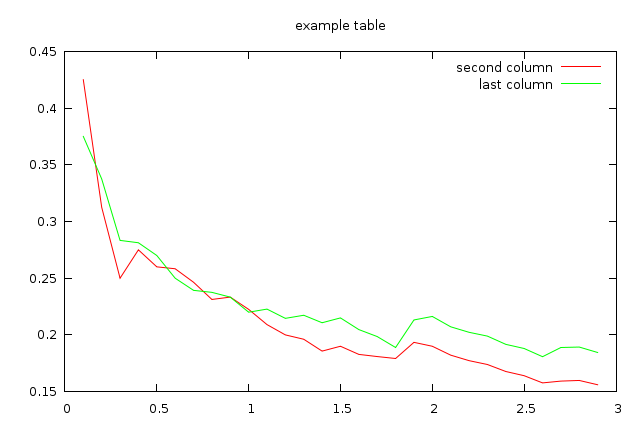

Figure 1: Plot of Table 1.

The options specified in any #+PLOT lines above the table are read and applied to the plot. Notice that the second #+PLOT line specifies labels for each column; if this line is removed the labels will default to the column headers in the table. Here are the #+PLOT lines used to create Figure 1.

#+PLOT: title:"example table" ind:1 type:2d with:lines
#+PLOT: labels:("first new label" "second column" "last column")

For a complete list of all of the options and their meanings see the options section at the end of this file. For more information on Gnuplot options see the gnuplot documentation, nearly all Gnuplot options should be accessible through org-plot.

Table 1: Data used to plot Figure 1.
independent var first dependent var second dependent var
0.1 0.425 0.375
0.2 0.3125 0.3375
0.3 0.24999993 0.28333338
0.4 0.275 0.28125
0.5 0.26 0.27
0.6 0.25833338 0.24999993
0.7 0.24642845 0.23928553
0.8 0.23125 0.2375
0.9 0.23333323 0.2333332
1 0.2225 0.22
1.1 0.20909075 0.22272708
1.2 0.19999998 0.21458333
1.3 0.19615368 0.21730748
1.4 0.18571433 0.21071435
1.5 0.19000008 0.2150001
1.6 0.1828125 0.2046875
1.7 0.18088253 0.1985296
1.8 0.17916675 0.18888898
1.9 0.19342103 0.21315783
2 0.19 0.21625
2.1 0.18214268 0.20714265
2.2 0.17727275 0.2022727
2.3 0.1739131 0.1989131
2.4 0.16770833 0.1916667
2.5 0.164 0.188
2.6 0.15769238 0.18076923
2.7 0.1592591 0.1888887
2.8 0.1598214 0.18928565
2.9 0.15603453 0.1844828

Historgrams

Org-plot can also produce histograms from 2d data. Figure 2 is created with the following options:

#+PLOT: title:"Citas" ind:1 deps:(3) type:2d with:histograms set:"yrange [0:]"

Notice that the column specified as ind contains textual non-numeric data; when this is the case org-plot will use the data as labels for the x-axis using the gnuplot xticlabels() function.

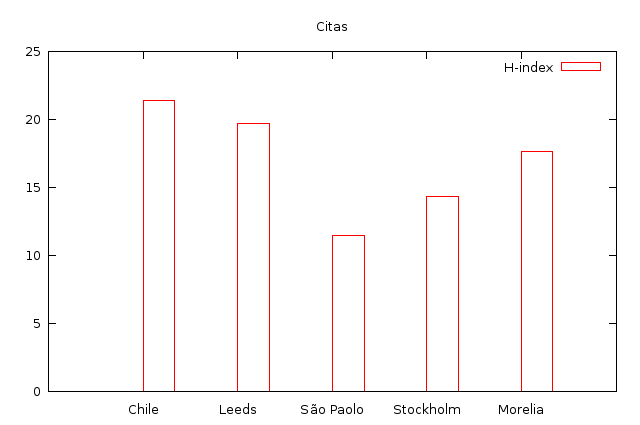

Figure 2: H-index of selected cities.
Table 2: Example 2.
Sede Max cites H-index
Chile 257.72 21.39
Leeds 165.77 19.68
São Paolo 71.00 11.50
Stockholm 134.19 14.33
Morelia 257.56 17.67

3d grid plots

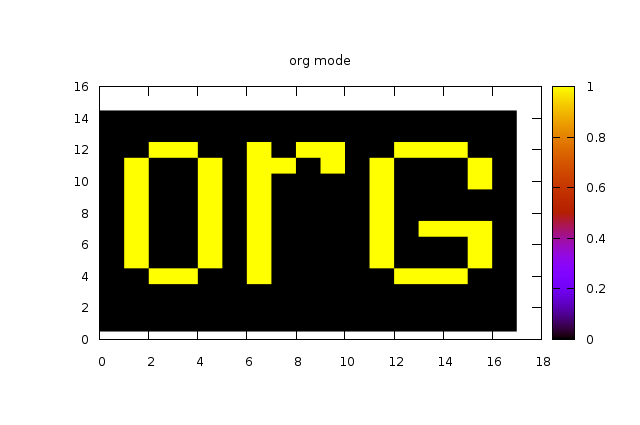

There are also some functions for plotting 3d or grid data. To see an example of a grid plot call org-plot/gnuplot C-M-g which will plot the following table as a grid.


To see the effect of map try setting it to t, and then re-plotting.

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 1 1 0 0 1 0 0 0 0 0 1 1 1 0 0
0 1 0 0 1 0 1 0 0 0 0 1 0 0 0 1 0
0 1 0 0 1 0 1 0 0 0 0 1 0 0 0 1 0
0 1 0 0 1 0 1 0 0 0 0 1 0 1 1 1 0
0 1 0 0 1 0 1 0 0 0 0 1 0 0 0 0 0
0 1 0 0 1 0 1 0 0 0 0 1 0 0 0 0 0
0 1 0 0 1 0 1 0 0 0 0 1 0 0 0 1 0
0 1 0 0 1 0 1 1 0 1 0 1 0 0 0 1 0
0 0 1 1 0 0 1 0 1 1 0 0 1 1 1 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

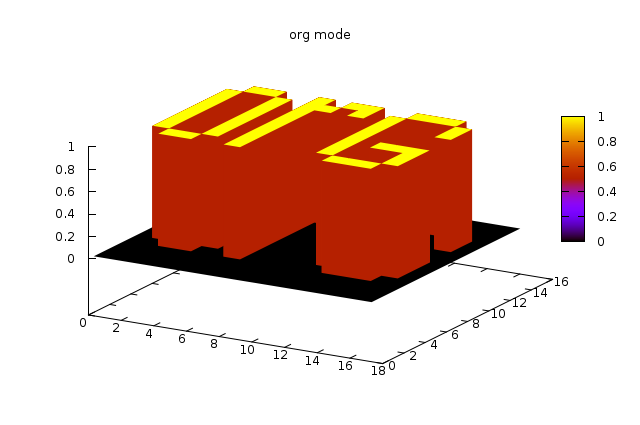

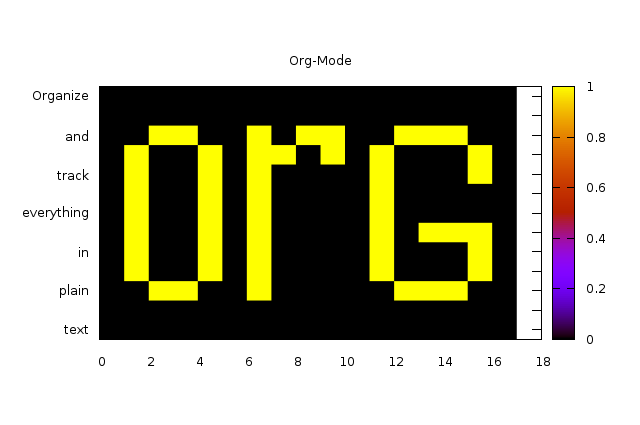

Plotting grids also respects the independent variable (ind:) option, and uses the values of the independent row to label the resulting graph. The following example borrows a short description of org-mode from Bernt Hansen on the mailing list (a more practical usage would label every single row with something informative).

text 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
  0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
plain 0 0 1 1 0 0 1 0 0 0 0 0 1 1 1 0 0
  0 1 0 0 1 0 1 0 0 0 0 1 0 0 0 1 0
in 0 1 0 0 1 0 1 0 0 0 0 1 0 0 0 1 0
  0 1 0 0 1 0 1 0 0 0 0 1 0 1 1 1 0
everything 0 1 0 0 1 0 1 0 0 0 0 1 0 0 0 0 0
  0 1 0 0 1 0 1 0 0 0 0 1 0 0 0 0 0
track 0 1 0 0 1 0 1 0 0 0 0 1 0 0 0 1 0
  0 1 0 0 1 0 1 1 0 1 0 1 0 0 0 1 0
and 0 0 1 1 0 0 1 0 1 1 0 0 1 1 1 0 0
  0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Organize 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

3d plots

Finally the last type of graphing currently supported is 3d graphs of data in a table. This will probably require some more knowledge of gnuplot to make full use of the many options available.

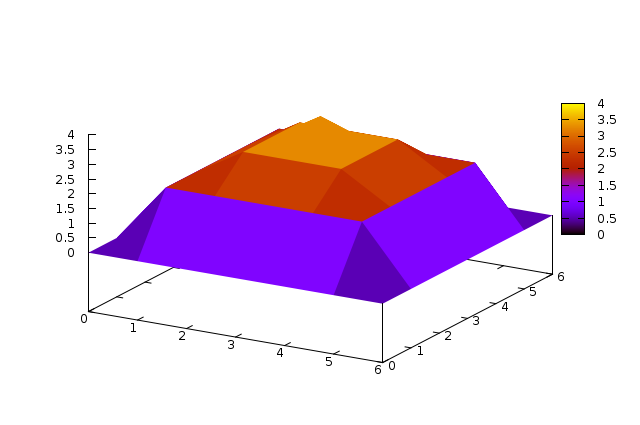

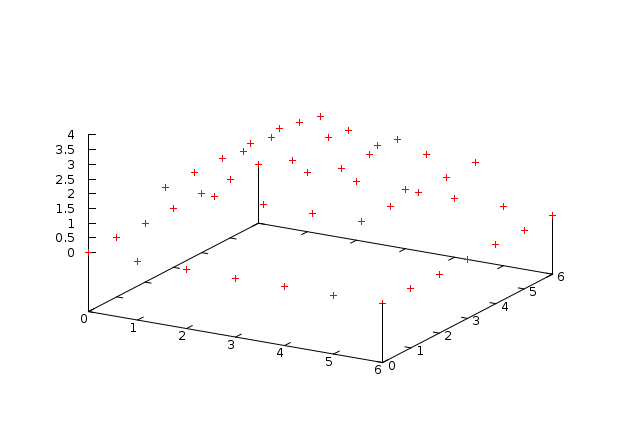

For some simple demonstrations try the following graph using some different with: options with:points, with:lines, and with:pm3d.

0 0 0 0 0 0 0
0 2 2 2 2 2 0
0 2 3 3 3 2 0
0 2 3 4 3 2 0
0 2 3 3 3 2 0
0 2 2 2 2 2 0
0 0 0 0 0 0 0

Setting Axis Titles

The question of the proper syntax for setting axis labels via org-plot has occurred on the mailing list.1 The answer is to use this:

#+PLOT: set:"xlabel 'Name'" set:"ylabel 'Name'"

Reference

Plotting Options

#

Gnuplot options (see the gnuplot documentation) accessible through org-plot, common gnuplot options are specifically supported, while all other options are accessible through specification of generic set commands, script lines, or specification of custom script files. Possible options are…

set
specify any gnuplot option to be set when graphing
title
specify the title of the plot
ind
specify which column of the table to use as the x axis
deps
specify the columns to graph as a lisp style list, surrounded by parenthesis and separated by spaces for example dep:(3 4) to graph the third and fourth columns (defaults to graphing all other columns aside from the ind column).
type
specify whether the plot will be '2d' '3d or 'grid'
with
specify a with option to be inserted for every col being plotted (e.g. lines, points, boxes, impulses, etc…) defaults to 'lines'
file
if you want to plot to a file specify the path to the desired output file
labels
list of labels to be used for the deps (defaults to column headers if they exist)
line
specify an entire line to be inserted in the gnuplot script
map
when plotting 3d or grid types, set this to true to graph a flat mapping rather than a 3d slope
script
if you want total control you can specify a script file (place the file name inside quotes) which will be used to plot, before plotting every instance of $datafile in the specified script will be replaced with the path to the generated data file. Note even if you set this option you may still want to specify the plot type, as that can impact the content of the data file.
timefmt
if there is time and/or date data to be plotted, set the format. For example, timefmt:%Y-%m-%d if the data look like 2008-03-25.
